PARADOX DIM1D -

Buy
Availability: Stock exhausted

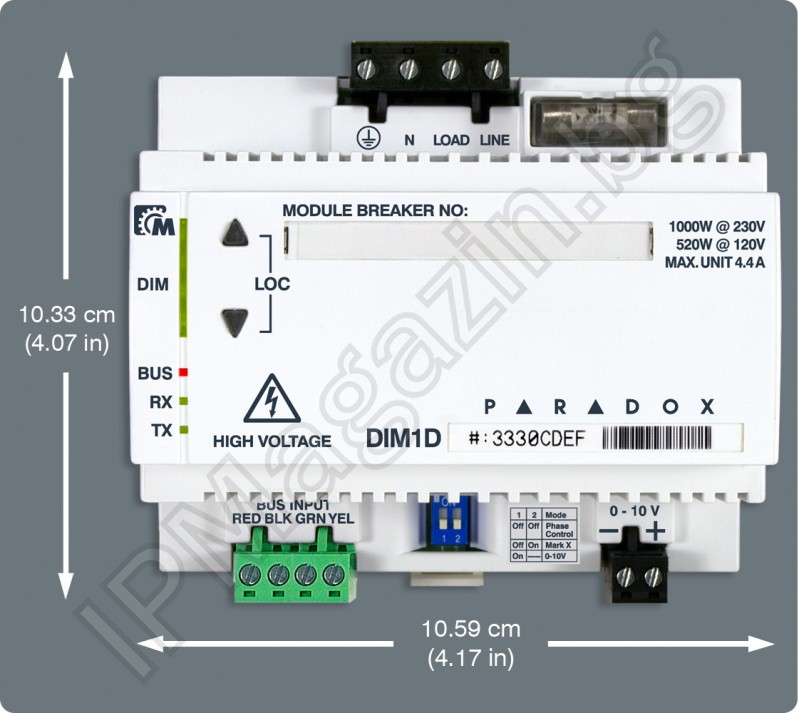

• PARADOX DIM1D - dimer-channel module
• One channel high voltage:
- Phase control dimmer
- Review of Mark X fluorescent lights
- Control from 0 to 10V of fluorescent lights
• Output Power: 1000W 230V / 520W 120V
• Maximum load: 4.4A
• Connects to multibas bus with 4-wire 13.8Vdc encrypted communication link speeds 500bps
• Firmware upgradeable via Multibus RS-485 at 57.6Kbps
• Programming of the module is done through BabyWare PC software
• Housing with DIN rail format with removable terminals for fast, secure, orderly and economical installation
• Supports 35 mm DIN rail
• Integrated buttons for manual control of dimming level
• LED display showing the intensity of shading
• 3-LED diodes for status display module
• Labels to identify the outputs

• Last Updated: 04.07.2012 15:06


PARADOX K651 - 32-character LCD keypad with blue backlit
PARADOX K651 - 32-character LCD keypad with blue backlit

• PARADOX K651 • Compatible with Imperial and Digiplex EVO • Connects Multibus bus with 4-wire 13.8Vdc encrypted connection, communication speed is 500bps sashtestvyava • Firmware upgradeable via Multibus RS-485 at 57.6Kbps • All programming is done through BabyWare PC software • Display the st...

Availability: Stock exhausted
View Details

123.95 EUR



PARADOX K07C color LCD keypad Grafica maintenance divisions 32-
PARADOX K07C color LCD keypad Grafica maintenance divisions 32-

• PARADOX • K07C Grafica keypad Color LCD supporting 32 divisions • Upload photos or images using the SD slot • Support for two-color (16 bit) for background and text • Support for full display sreensaver integrated SD memory card • Compatible with Imperial (Q2) and Digiplex EVO • Firmware upg...

Availability: Stock exhausted
View Details

266.50 EUR



PARADOX V32 - Imperial
PARADOX V32 - Imperial

• PARADOX V32 - Integrated System Imperial Imperial is a system designed to offer true integration of security systems, access control and the latest communication technologies. The new system is easy for programming, maintenance, operation and management. "Imperial" is a system solution that fu...

Availability: Stock exhausted
View Details

232.19 EUR



PARADOX PS27D - 2,85 A power module, 4 outputs for mounting DIN
PARADOX PS27D - 2,85 A power module, 4 outputs for mounting DIN

• PARADOX PS27D • 2,85 A Power Supply • 4 outputs for mounting DIN...

Availability: Stock exhausted
View Details

149.18 EUR



PARADOX DIM4D - 4 channel dimmer module
PARADOX DIM4D - 4 channel dimmer module

• PARADOX DIM4D • Four channels for phase control of high voltage • Output Power: 1000W 230V / 520W 120V • Maximum load: 4.4A per channel (15 total) • Connects to multibas bus with 4-wire 13.8Vdc encrypted communication link speeds 500bps • Firmware upgradeable via Multibus RS-485 at 57.6Kbps ...

Availability: Stock exhausted
View Details

454.98 EUR



PARADOX HV8D - 8-channel module to control the motors
PARADOX HV8D - 8-channel module to control the motors

• PARADOX HV8D - 8-channel module to control motors • 8 relay outputs for control of high voltage (110/240V, 10A resistive load) • Control of bikes to 1/2hp (max. 8A) • 2 modes: mode and relay mode relay closure • relay output mode: - Control of eight high-voltage devices • Mode switch: - Out...

Availability: Stock exhausted
View Details

284.38 EUR



PARADOX LV8D - 8-channel relay module to control low voltage
PARADOX LV8D - 8-channel relay module to control low voltage

• PARADOX LV8D - 8-channel relay module to control the low voltage • 8 solid relay outputs (0-24V AC / DC, 500mA each) • Connects to Multibus: 4-wire bus 13.8Vdc encrypted communication 500bps • Firmware upgradeable via Multibus using RS-485 57.6Kbps • All programming is done using BabyWare PC s...

Availability: Stock exhausted
View Details

203.11 EUR



PARADOX MSA4H / V - 4 button controller for the Wall
PARADOX MSA4H / V - 4 button controller for the Wall

• PARADOX MSA4H / V 4 button controller for wall • 4 buttons to control each output (lighting, sprinklers, etc.) or macro (set of outputs) • Horizontal or vertical placement of modules to fit the requirements of designers • Set the mode selector buttons (one button on / off) or • Switch mode (on...

Availability: Stock exhausted
View Details

74.34 EUR



PARADOX MSA8H / V - 8 button controller for wall to wall
PARADOX MSA8H / V - 8 button controller for wall to wall

• PARADOX MSA8H / V - 8 button controller for wall to wall • 8 buttons control each output (lighting, sprinklers, etc.) or macro (set of outputs) • Horizontal or vertical placement of modules to fit the requirements of designers • Set the mode selector buttons (one button on / off) or Switch m...

Availability: Stock exhausted
View Details

84.29 EUR
